Parameter Table for Spiral Welded Pipe Production Line
Serial Number | form | Product specification mm | Universal coil weight t | Roll width mm | Applicable plate thickness mm | Installed capacity kw | Mechanical land occupation m2 |
1 | LH-400 | Φ209-426 | 10 | 400-600 | 5-8 | 150 | 18*72 |
2 | LH-500 | Φ209-529 | 15 | 400-600 | 5-8 | 180 | 18*72 |
3 | LH-600 | Φ219-630 | 15 | 450-750 | 6-10 | 190 | 21*72 |
4 | LH-700 | Φ219-720 | 15 | 450-750 | 5-12.7 | 210 | 21*72 |
5 | LH-800 | Φ219-820 | 20 | 500-1650 | 6-12.7 | 220 | 24*78 |
6 | LH-1000 | Φ219-1020 | 20 | 500-1250 | 6-12.7 | 220 | 24*78 |
7 | LH-1400 | Φ325-1420 | 25 | 500-1250 | 6-16 | 400 | 24*120 |
8 | LH-1600 | Φ426-1620 | 30 | 500-1600 | 6-18 | 400 | 24*120 |
9 | LH-1800 | Φ508-1820 | 30 | 1100-1600 | 8-20 | 500 | 24*180 |
10 | LH-2000 | Φ508-2020 | 30 | 1200-1600 | 8-25.4 | 550 | 24*180 |
11 | LH-2400 | Φ508-2400 | 30 | 1200-2000 | 8-25.4 | 600 | 30*200 |
12 | LH-3000 | Φ508-3000 | 30 | 1200-2000 | 8-25.4 | 700 | 30*200 |
13 | LH-3600 | Φ720-3600 | 30 | 1200-2100 | 10-25.4 | 750 | 30*200 |

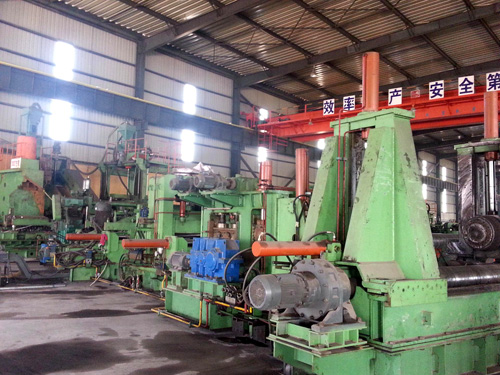

Spiral welded pipe production line
