Technical parameters of CNC vertical lathe:
project | unit | CK5225 | CK5235 | CK5240 | CK5250 | CK5263 | CK5280 |
Workbench diameter | mm | 2250 | 3150 | 3600 | 4500 | 5700 | 6300 |
Larger turning diameter | mm | 2500 | 3500 | 4000 | 5000 | 6300 | 8000 |
Large workpiece height | mm | 1600 | 2500 | 2500 | 3150 | 4000 | 4000 |
Large workpiece weight | tom | 10 | 32 | 40 | 50 | 80 | 125 |
Large cutting force | KN | 40 | 50 | 50 | 50 | 63 | 63 |
Ram stroke (Z-axis) | mm | 1600 | 1600 | 2000 | 2000 | 2500 | 3150 |
Higher workbench speed | r/min | 63 | 63 | 50 | 40 | 32 | 32 |
Large torque on the workbench | KNm | 63 | 63/100 | 63/100 | 125 | 250 | 300 |

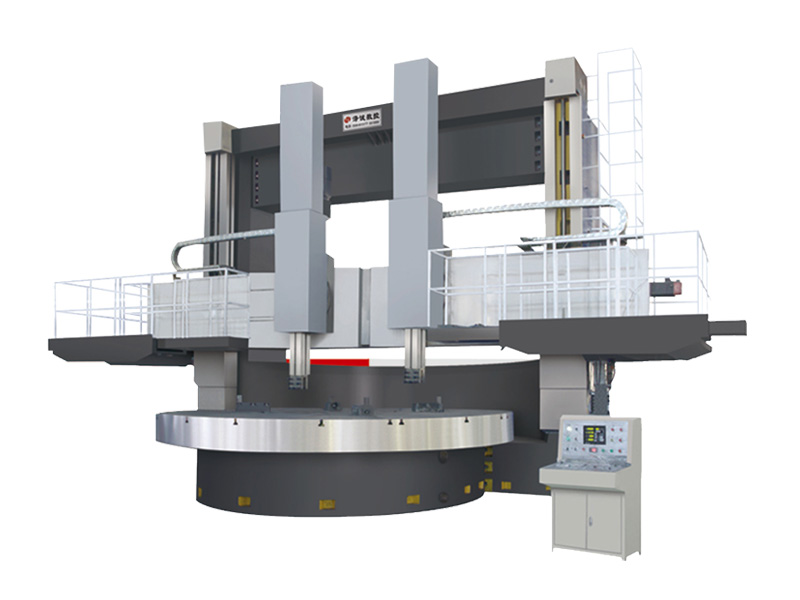

Technical characteristics of CNC vertical lathe:
This series of machine tools can complete rough, fine, flat, grooving, cylindrical, conical, and spherical surfaces inside and outside the car. Through programming, complex rotary cutting surfaces can be achieved. The workbench uses a DC motor and a gearbox to achieve stepless speed regulation, and the workbench uses a static pressure guide rail.
Two CNC racks can achieve synchronous coarse and fine turning.
★ Adopting CNC systems from well-known brands such as Siemens and Fanac.
The crossbeam guide rail adopts ultra audio quenching and new alloy wear-resistant materials, which can ensure its long-term processing accuracy.
★ Full closed-loop control of optional light distribution shed ruler to achieve higher accuracy.
