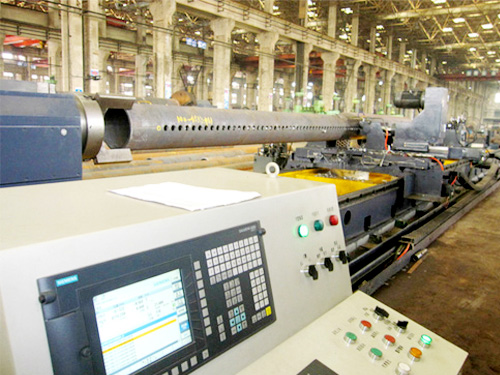

Parameters of header drilling machine overall dimension
model | Zc-zjk5014/3(2)(1) | |
Workpiece size | Header diameter range | 100-500 |
Header length range | 2000-14000 | |
Header thickness ≤ | 50（20 # boiler steel plate） | |
Drilling diameter ≤ | 63 | |
Hole spacing accuracy | Adjacent hole spacing | 0.5 |
Distant hole spacing | 1.5 | |
Horizontal sliding table form | Hydraulic slide | Fast forward co forward rewind automatic conversion |
number | Spindle taper hole | Mohs 5 |
Spindle speed | 80-200 | |
Spindle stroke | 450 | |
spindle feed speed | 10-5000 | |
power | 15 | |
Workpiece rotation speed | 0-2.8 | |
Longitudinal sliding plate movement speed | 0-8 | |
Tailstock drive motor power | 2.2 | |
Workpiece rotation servo motor power | 5 | |
Longitudinal sliding plate servo motor power | 2 | |
Chip conveyor drive motor power | 750 | |
Cooling pump motor power | 450 | |
Height from chuck Centre-to-centre distance to ground | 1200 | |
（长*宽*高） | 20000*3000*1800 | |
Machine weight |
| 3 |
